Masamitsu HD-SDI Camera

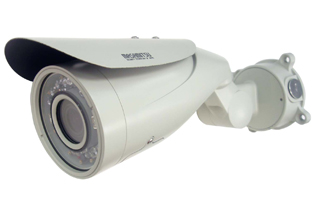

HD-SDI IR Camera
MSC-A2P5N4HRtA
Specifications
| Model No. | MSC-A2P5N4HRtA | ||
|---|---|---|---|
| Image Sensor | 1/3" 2.1MP Panasonic CMOS Sensor | ||
| Min. Illumination | 1.0LUX/F1.2 | ||
| Resolution | 2.1 Megapixel 1080P, 1920×1080 (30FPS) | ||
| Number of Pixels | 1944（H）×1092(V) | ||
| Scanning System | Progressive Scan | ||
| Synchronization | Internal | ||
| S/N Ratio | More than 50db | ||
| Gamma | 0.45 | ||
| Defog | ON/ OFF (FOG or RAIN) | ||
| Electronic Shutter | 1/30, 1/60(1/50), FLK, 1/250～1/50000 | ||
| Lens | 2.8-12mm | ||
| White Balance | ATW / AWC⇒SET / INDOOR / OUTDOOR / MANUAL | ||
| Back Light Compensation | OFF/BLC/HBLC | ||
| Gain Control | OFF/LOW/MIDDLE/HIGH | ||
| 3DNR | ON/OFF | ||
| Motion Detection | 3 areas | ||
| Privacy Mask Function | 8 areas | ||
| Mirror | OFF/Mirror/V-FLIP/ROTATE | ||
| Day/Night | AUTO | ||
| Blemish Compensation | OSD | ||
| Video Output（BNC） | HD-SDI:1.485G/s(SMPTE292M) / 1.0 Vp-p (75Ω) | ||
| Power Supply | DC12V / AC24V | ||
| Power Consumption | IR OFF:500mA (Max) / IR ON:1000mA (Max) | ||
| Operating Temp | -10℃～+45℃ | ||
| IR LED | 20 IR LED | ||
| Dimensions | 340mm×100mm×156mm | ||
| Weight | Approx.1175g | ||
