HD-SDI Repeater
MS-HLR01S

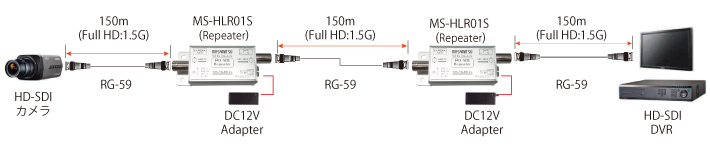

MS-HLR01S is a HD-SDI distance extension device which can extend the distance up to 150 meter with RG59, 200 meter with RG6. it is cost-effective and easy solution for HD-SDI signal transmission.
Specifications
| MODEL No. | MS-HLR01S | |
|---|---|---|
| Video In / Out | HD-SDI | |
| Power In | DC 12V | |
| Max. Distance | RG-6 / 200m(Full HD: 1.5G) RG-6 / 130m(Full HD: 3G) |
|
| Connect Port | SDI In / Out | BNC-F (75Ω) |
| Power In | Terminal Block 2P | |
| LED | Green | ON : HD-SDI signal in |
| Yellow | ON : Power in | |
| Temperature / Humidity | -10°C ~ +50°C / 0 ~ 80% | |
| Case body/ Weight | Aluminum / 100g | |
| Dimensions(mm) | 72(W) x 33(H) x 21(D) | |
