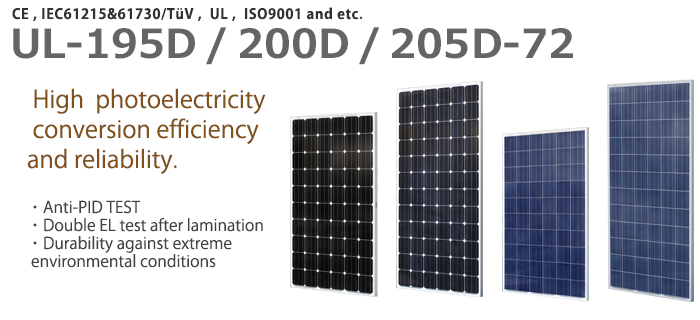

Masamitsu Monocrystalline Solar Module
Electrical Performance
| Model No. | UL-195D-72 | UL-200D-72 | UL-205D-72 |
|---|---|---|---|
| Power Output(Pmax) | 195 W | 200 W | 205 W |
| Module Efficiency（％） | 15.27 ％ | 15.67 ％ | 16.06 ％ |
| Optimum Operating Voltage(Vmp) | 36.0 V | 36.3 V | 36.5 V |
| Optimum Operating Current(Imp) | 5.42 A | 5.52 A | 5.63 A |
| Open Circuit Voltage (Voc) | 45.1 V | 45.3 V | 45.4 V |
| Short Circuit Current (Isc) | 5.84 A | 5.91 A | 5.98 A |
| Detail |  |
||
Operating Conditions
| Max. System Voltage | 1000V | Nominal Operating Cell Temperature | 45 ± 2 ℃ |
|---|---|---|---|
| Max. Series Fuse Rating | 15A | Temperature Coefficient of Pmax | -0.413 %/℃ |
| Operating Temperature | -40℃～＋85℃ | Temperature Coefficient of Voc | -0.330 %/℃ |
| Max. Static Load（Front e.g., Snow & wind） | 5400Pa | Temperature Coefficient of Isc | ＋0.065 %/℃ |
| Max. Static Load（Back e.g., wind） | 3800Pa | ||
| Application Class | A |
Construction Materials
| Front Cover | low-iron tempered glass /3.2mm | Dimensions（H*W*D） | 1637 * 992 * 40 mm |
|---|---|---|---|
| Cells （quantity/ material/ type/ dimension） | 72 / Mono / 125*125mmmm | weight | 15.0 kg |
| Encapsulant | ethylene vinylacetate (EVA) | ||
| Frame（Materia/Color） | Anodized aluminium alloy / Silver or Black | ||
| Junction Box（IP Class） | IP67 | ||
| Cable （lemgth/ cross-sectional area） | 900mm / 4 mm² | ||
| Plug Connector | MC4 compatible |
